80kw generators super silent 100kva generator set data
DIESEL GENERATOR SETGeneral Features:
● Composed of YUCHAI diesel engine and Marathon or Yangke alternator
● 24V DC start motor and storage battery
● Brush-less, Self-excited, IP23, insulation class H alternator
● Engine cooling system:water-cooled
● Key start panel control system as standard,digital auto-start panel is optional
● 10-hour operation base tank
● Optional open type or silent type
● All generating sets are gone through rigorous testing before being released to the market place,including 50% load, 75% load, 100% load, 110% load and all protection function(over-speed stop, high water temperature, low oil pressure, battery charging failure, emergency stop)
80kw generators set by NGINE SPECIFICATION
YUCHAI Engine Model: YC6B35Z-D20
Number of Cylinders: 6
Cylinder Arrangement: Vertical in-line
Cycle: 6 stroke
Aspiration: Turbo-charged
Bore x Stroke(mm x mm): 108 x 125
Displacement(Liter): 6.871
Prime Power/Speed (kW/rpm): 90 / 1500
Standby Power/Speed(kW/rpm): 99 / 1500
Speed Governor: Mechanical
Cooling System: Water-cooled
Speed Stability(%): ≤5%
ALTERNATOR SPECIFICATION
YANGKE Alternators neet the requirement of BSEN 60034 and the relevant section of other international
standards such as BS5000, VDE0530, NEMA MG1-32,IEC34,CSA22.2-100,As1359,and other standards
and certifications can be considered on request.
The2/3 pitch design avoids excessive neutral currents.With the 2/3 pitch and carefully selected
pole and tooth designs,ensures very low waveform distortion.
Brushless alternator with brushless pilot exciter for excellent load response.Class H insulation, easy parallelling with mains or other generators, standard 2/3 pitch stator windings avoid excessive neutral currents.
100kva diesel generator set Dimension and Weight
Open Type
Overall size (L*W*H)
2300 x 1150 x 1500
Weight: 1400kg
Super Silent Type
Overall size (L*W*H)
2860 x 1150 x 2100
Weight:1850kg
Warning:
※ Alternator Under/Over Voltage
※ Alternator Under/Over Frequency
※ Mains Under/Over Voltage
※ Mains Under/Over Frequency
※ Under/Over Speed
※ Low Oil Pressure Pre-Alarm
※ High Engine Temp. Pre-Alarm
※ High/Low Battery Voltage
※ Over-current
※ Periodic maintenance
Product Tags:
|
|

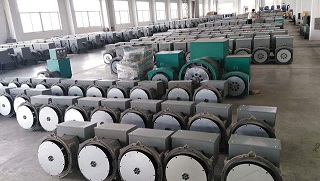

80kw generators with super silent 100kva generator set Images
|
