60KVA DEUTZ Diesel Generator BF4M2012 Water cooled Generator

Diesel Generator Set with Deutz Engine

MODEL:QS-DE60
Prime Power(50Hz) 48KW / 60KVA

60kva Deutz Diesel Generator ENGINE DATA
Manufacturer / Model: DEUTZ / BF4M2012, 4-cycle
Air Intake System: Turbo,
Fuel System: Directly Injection ,Single injection Pumps
Cylinder Arrangement: 4 in line
Displacement: 4.04L
Bore and Stroke: 101×126 (mm)
Compression Ratio: 18.4:1
Rated RPM: 1500rpm
Max. Standby Power at Rated RPM: 60KW/82HP
Governor Type: Mechanical Governor

60kva Alternator Data

Number of Phase: 3
Connecting Type: 3 Phase and 4 Wires, “Y” type connecting

Number of Bearing: 1
Power Factor: 0.8
Protection Grade: IP23
Altitude: ≤1000m
Exciter Type: Brushless, self-exciting
Insulation Class, Temperature Rise: H/H
Telephone Influence Factor (TIF): <50
THF: <2%
Voltage Regulation, Steady State: ≤±1%
Alternator Capacity: 60KVA
Alternator Efficiencies: 88.8%
Air Cooling Flow: 0.216m3/s

60kva Deutz Generator Dimension & Weight

With Base Fuel Tank
Overall Size(mm): 2000 × 750 × 1300
Weight: 1050 kg

Soundproof Type
Overall Size(mm): 2440 × 1060 × 1680
Weight: 1550kg

60kva deutz diesel generator

60kva deutz generator

60kva generator

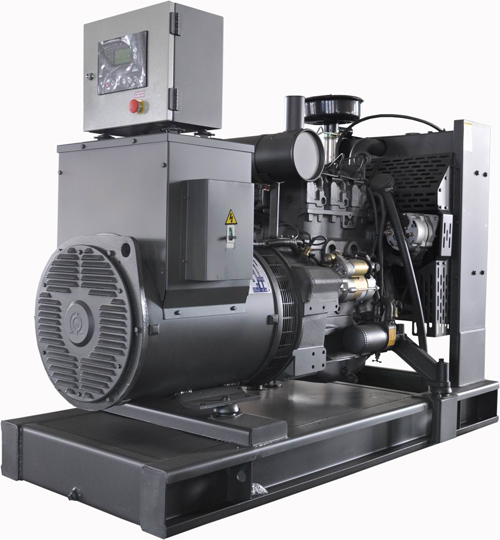

60KVA DEUTZ Diesel Generator BF4M2012 Water cooled Generator Images
